Aquatex Drainage Trenchliner

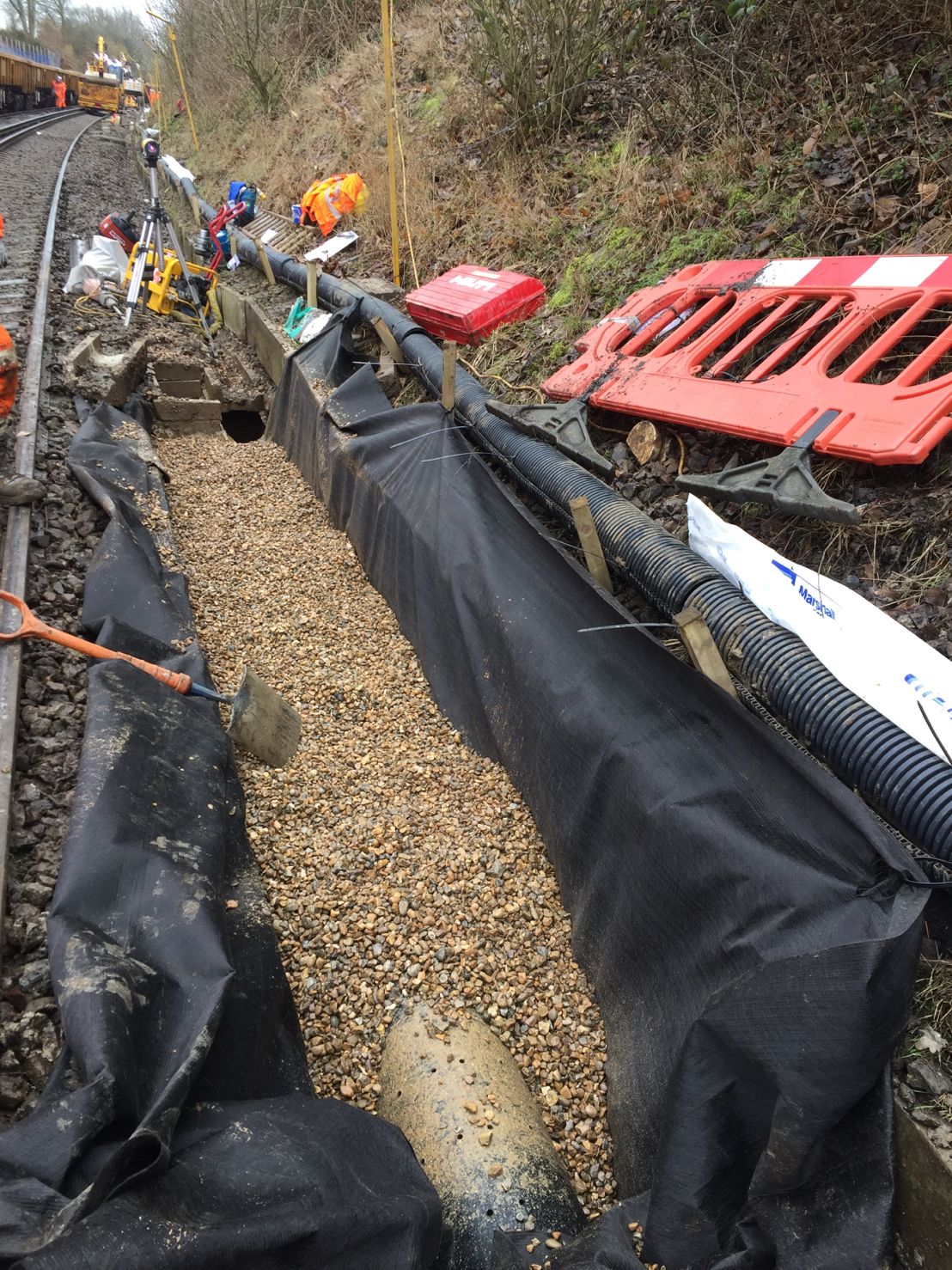

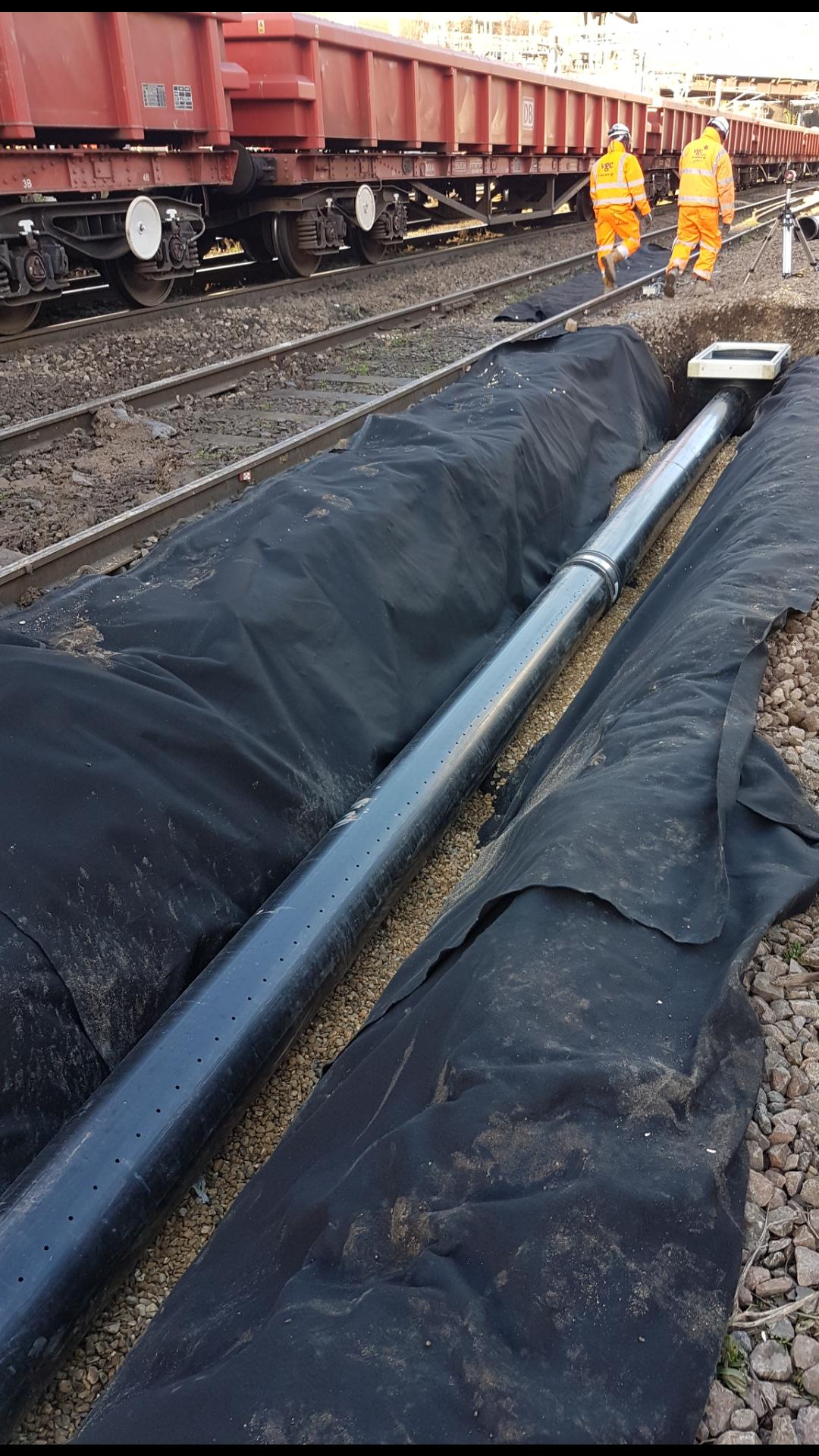

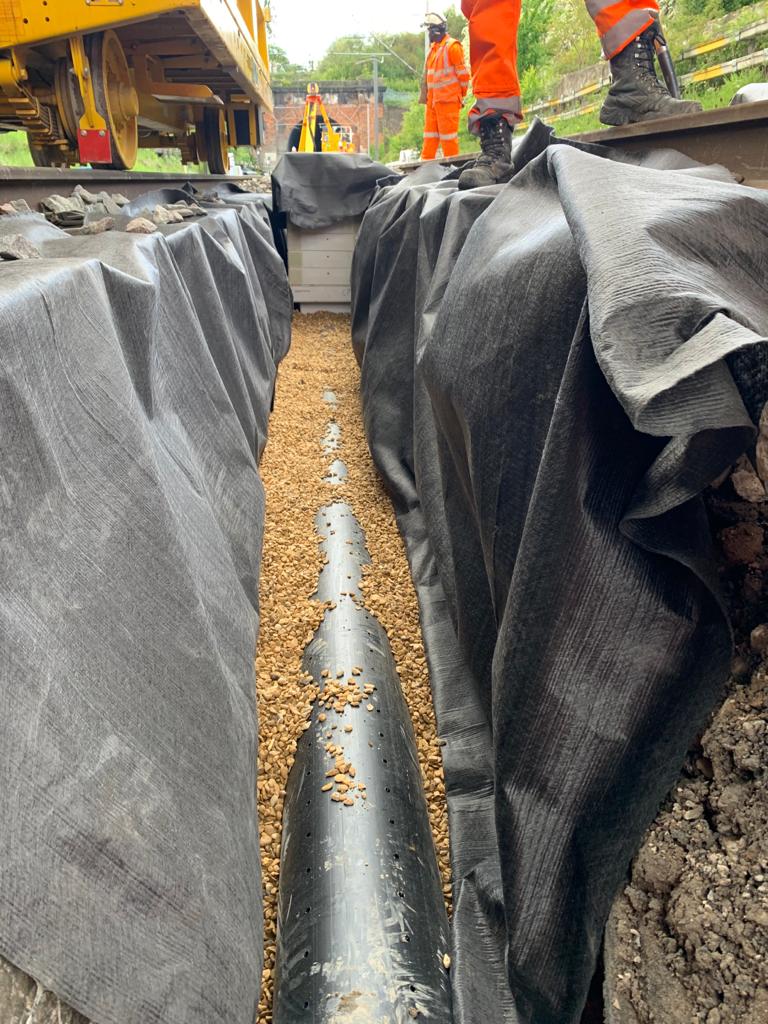

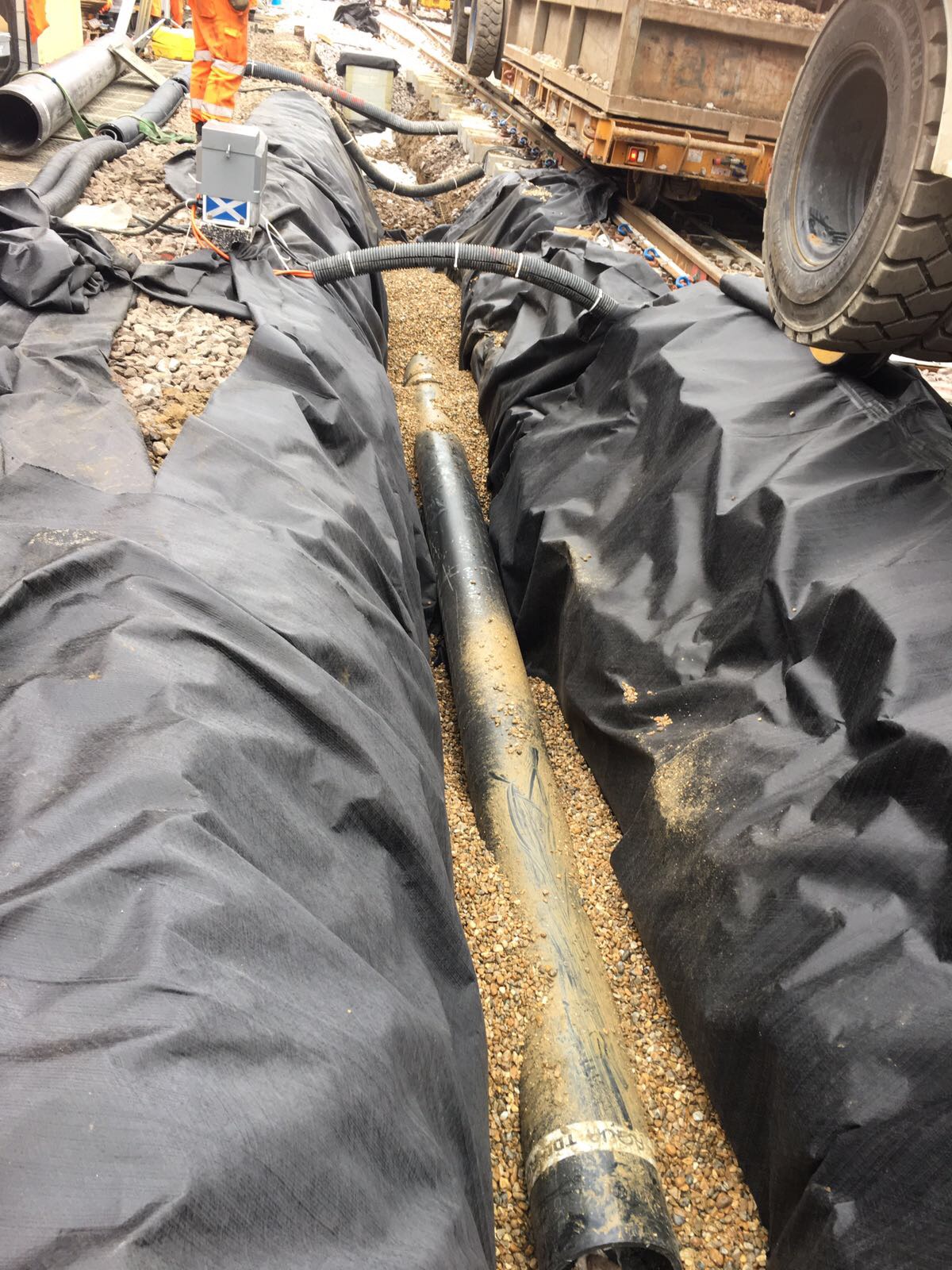

Aquatex Trenchliner is a needle punched non-woven geotextile manufactured from continuous virgin filament UV stabilised Polypropylene and ideally suited for use in track drainage applications as a filtration membrane; offering high resistance to installation damage, high water permeability and excellent UV resistance.

As per Network Rail Standard NR/L3/CIV/005/2A, track drainage geotextiles should conform with RT/CE/S/010:

Property RT/CE/S/010/02 Aquatex
Permeability ≥ 40 litres / second / m² 100 litres / second / m²
Breaking Load 10 kN / m 10 kN / m
Apparent Pore Size > 30 µm - < 180µm  100 µm
Puncture Resistance 1500 N 1500 N

Needle punched non-woven geotextiles offer many benefits over traditional heat bonded alternatives. Aquatex is available in a range of different width’s to suit site specific requirements.
